Installation on AWS

You can get a TryMOSK image from the Mirantis CDN server The latest image releases are located in folders with pefix mosk- in the name. You can also use a prepared AMI image on Amazon servers. This article describes the steps required to deploy TryMOSK from a prepared AMI image. At present time they are available on the us-east-2 region.

Creating a TryMOSK Instance Using the Amazon EC2 Console#

Step 1: Open the Amazon EC2 Console

  1. Sign in to the AWS Management Console.
  2. Open the Amazon EC2 console at: https://console.aws.amazon.com/ec2/.

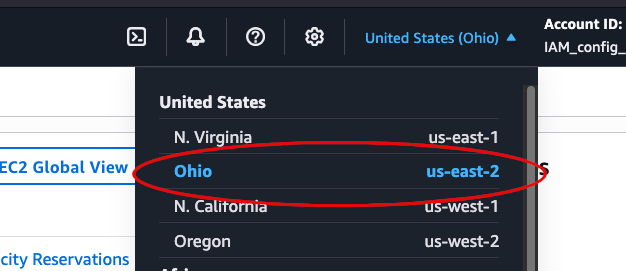

Step 2: Select the AWS Region

  1. In the navigation bar at the top-right, locate the Region selector.
  2. Select US East (Ohio). Region

Step 3: Create a Security Group

  1. In the left navigation pane, under Network & Security, choose Security Groups.
  2. Click Create security group.
  3. In the Basic details section, provide:
  4. Security group name: A descriptive name (for example: trymosk-sg).
  5. Description: Purpose of the security group.
  6. In the Inbound rules section:
  7. Click Add rule.
  8. For Type, choose SSH.
  9. If you plan to use OpenVPN, click Add rule again, choose Custom UDP Rule, set Port range to 1194, and Protocol to UDP.
  10. Click Create security group. Security Grops

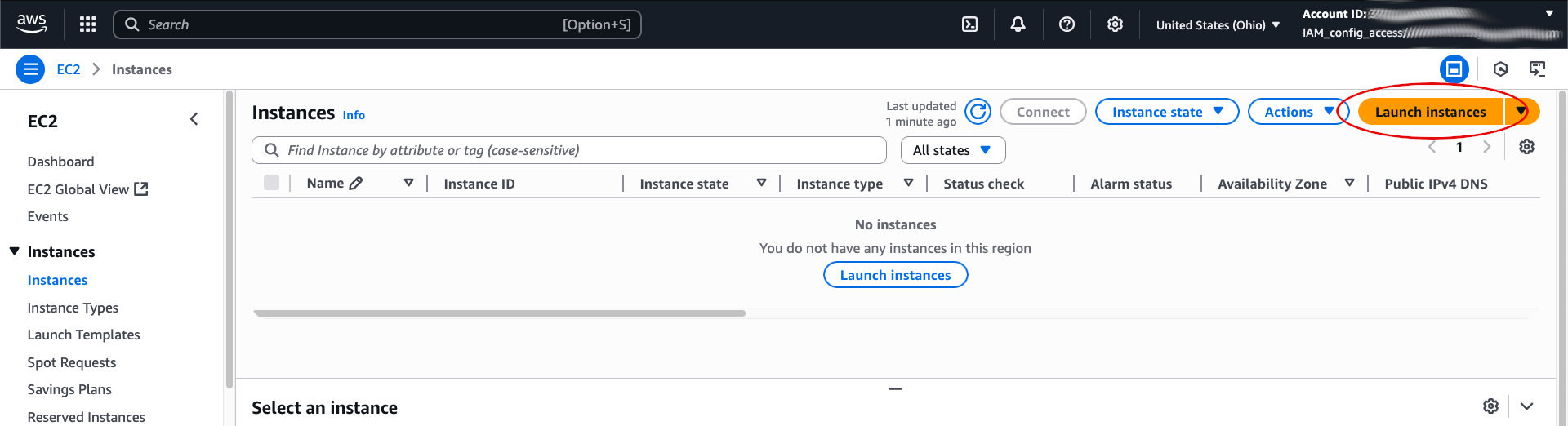

Step 4: Launch the TryMOSK instance

  1. In the left navigation pane, choose Instances, then click Launch instances.
  2. Under Name and tags, set the Name (for example: My TryMOSK).
  3. Under Application and OS Images (Amazon Machine Image):
  4. Type trymosk in the search box.
  5. Select the required image from the results.
  6. Under Instance type, choose t2.xlarge (or t2.2xlarge for better performance).
  7. Under Key pair (login):
  8. Select an existing key pair, or
  9. Click Create new key pair to create one.
  10. Under Network settings, choose Select existing security group and select the one created in Step 3.
  11. Under Configure storage, set Root volume size to 40 GB or more.
  12. Click Launch instance. EC2

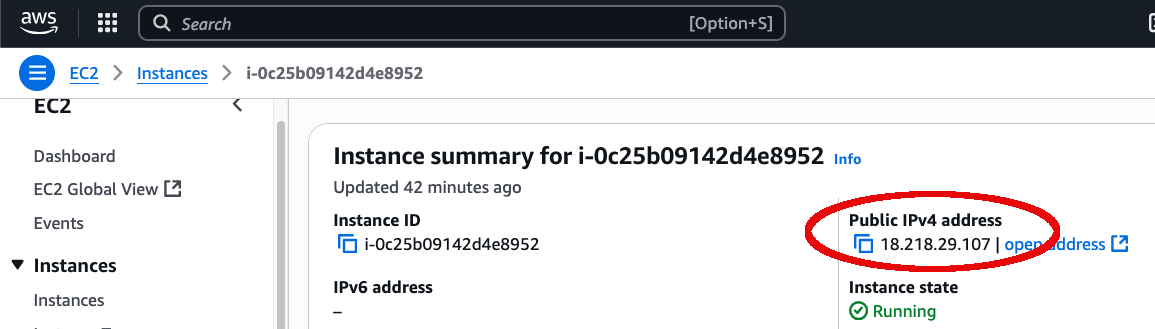

Step 5: Get the instance’s Public IP address

  1. Wait until the Instance state changes to Running.
  2. Select your instance and note the Public IPv4 address in the details panel. Public IP

Step 6: Connect to the instance via SSH

  • Linux/macOS:
ssh -i /path/to/private-key.pem ubuntu@<PublicIPv4Address>
  • Windows (PuTTY):
  • Convert your .pem key to .ppk using PuTTYgen.
  • Open PuTTY, enter the public IPv4 address, and load your .ppk key in Connection → SSH → Auth.

Creating a TryMOSK Instance Using the AWS CLI#

This procedure describes how to launch a TryMOSK EC2 instance using the AWS Command Line Interface (AWS CLI).

Step 1: Install the AWS CLI

Follow the installation instructions in the AWS CLI User Guide: https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

Step 2: Configure the AWS CLI

  1. Follow the quick start configuration guide: https://docs.aws.amazon.com/cli/latest/userguide/getting-started-quickstart.html
  2. Important: Set the default AWS region to us-east-2 to ensure all operations are performed in the correct region:
aws configure set region us-east-2

Step 3: Create or import a Key Pair

You will use this key pair to connect to your EC2 instance via SSH.

Option A – Create a new key pair

aws ec2 create-key-pair --key-type rsa --key-name <your-key-name> \
--query 'KeyMaterial' --output text > <private-key-file>.pem

Where:

  • <your-key-name> – unique key pair name (up to 255 ASCII characters).
  • <private-key-file> – file name for the private RSA key (keep it in a safe place).

Example:

aws ec2 create-key-pair --key-type rsa --key-name my-key-for-trymosk \
--query 'KeyMaterial' --output text > my_private_key.pem

Option B – Import an existing public key

aws ec2 import-key-pair --key-name <your-key-name> \
--public-key-material fileb://<public-key-file>

Where:

  • <public-key-file> – path to the .pub public key file.

Example:

aws ec2 import-key-pair --key-name another-key-for-trymosk \
--public-key-material fileb://home/ubuntu/test_rsa.pub --output text

Example response:

b8:d6:be:72:9c:60:d8:b8:59:d9:00:ab:bd:9d:8c:f8 another-key-for-trymosk key-00d4cf79ad02dd1c5

Step 4: Create a Security Group

4.1. Find your default VPC ID

aws ec2 describe-vpcs --query='Vpcs[?IsDefault].VpcId' --output text
Example of response:
  vpc-4744c62c

4.2. Create the security group

aws ec2 create-security-group --group-name <your sg name> \
--description "<your sg description>" --vpc-id <VPC Id> \
--query='GroupId' --output text
Where:

  • <sg-name> – security group name (unique within VPC, up to 255 characters, cannot start with sg-).
  • <sg-description> – description of the security group.
  • <VPC-ID> – ID from step 4.1

Example:

aws ec2 create-security-group --group-name trymosk-security-group \
--description "Test security group for TryMOSK" --vpc-id vpc-4744c62c \
--query='GroupId' --output text
Example of response:
sg-0d72aa991587b5648

4.3. Add inbound rules Allow SSH (port 22) and OpenVPN (port 1194 UDP):

aws ec2 authorize-security-group-ingress --group-id <sg-id> --protocol tcp --port 22 --cidr 0.0.0.0/0
aws ec2 authorize-security-group-ingress --group-id <sg-id> --protocol udp --port 1194 --cidr 0.0.0.0/0
Where <sg-id> is from step 4.2.

Step 5: Find the TryMOSK AMI ID

aws ec2 describe-images --filters Name=name,Values="trymosk*" \
--query='Images[*].[ImageId,Name,CreationDate]' --output table

Example response:

--------------------------------------------------------------------------------------------------
|                                         DescribeImages                                         |
+-----------------------+-------------------------------------------+----------------------------+
|  ami-0504712c3ecb27331|  trymosk-jammy-amd64-25.1-20250723112122  |  2025-07-29T09:52:53.000Z  |
+-----------------------+-------------------------------------------+----------------------------+

Step 6: Launch the TryMOSK instance

aws ec2 run-instances --image-id <AMI Id> --count 1 \
--instance-type t2.xlarge \
--key-name <rsa key pair name> \
--security-group-ids <sg id> \
--associate-public-ip-address \
--block-device-mapping DeviceName=/dev/sda1,Ebs={VolumeSize=<root volume size>} \
--query='Instances[0].InstanceId' --output text

Where:

  • <AMI-ID> – AMI ID from step 5.
  • <rsa-key-name> – key pair from step 3.
  • <sg-id> – security group from step 4.
  • <root-size> – root volume size (minimum 40 GB).

Example:

aws ec2 run-instances --image-id ami-0504712c3ecb27331 --count 1 \
--instance-type t2.xlarge \
--key-name another-key-for-trymosk \
--security-group-ids sg-0d72aa991587b5648 \
--associate-public-ip-address \
--block-device-mapping DeviceName=/dev/sda1,Ebs={VolumeSize=40} \
--query='Instances[0].InstanceId' --output text

Example of response:

i-0c8a0969dfd64c909

Step 7: Wait for the instance to start

aws ec2 describe-instances --instance-ids <your instance Id> \
--query='Reservations[0].Instances[0].State.Name' --output text

Where <your instance Id> is from step 6. Example:

aws ec2 describe-instances --instance-ids i-0c8a0969dfd64c909 \
--query='Reservations[0].Instances[0].State.Name' --output text

Example of response:

pending

Step 8: Get the public IPv4 address

aws ec2 describe-instances --instance-ids <your instance Id> \
--query='Reservations[0].Instances[0].PublicIpAddress' --output text

Where <your instance Id> is from step 6. Example:

aws ec2 describe-instances --instance-ids i-0c8a0969dfd64c909 \
--query='Reservations[0].Instances[0].PublicIpAddress' --output text

Example of response:

18.218.29.107

Step 9: Connect via SSH

From your local computer:

  • Linux/macOS:
ssh -i /path/to/private-key.pem ubuntu@<PublicIPv4Address>
  • Windows (PuTTY):
    • Convert your .pem key to .ppk using PuTTYgen.
    • Open PuTTY, enter the public IPv4 address, and load your .ppk key in Connection → SSH → Auth.

Setting up TryMOSK on an AWS instance#

This section explains how to set up TryMOSK on the EC2 instance created in the previous steps.

Step 1: Start the TryMOSK installation

The installation process takes approximately 25 minutes. It will:

  • Install and configure Kubernetes and Rockoon on the instance.
  • Set up the OpenVPN server.
  • Create the OpenVPN client configuration file.

Run the following command to start the setup:

sudo screen -d -m /srv/trymosk/launch.sh

This runs the installation script inside a screen session, allowing it to continue even if your SSH connection is interrupted.

Step 2: Monitor the installation

You can view the installation log in real time:

sudo tail -f /var/log/trymosk-install.log

Step 3: Access TryMOSK after installation

When installation is complete, you can:

  1. Work with MOS directly via the console, or
  2. Retrieve the OpenVPN client configuration file and set up a VPN connection from your local computer.

Once connected via VPN, you can use:

  • Horizon (OpenStack web interface)
  • Mirantis Lens
  • Local kubectl commands to manage TryMOSK services.

Step 4: View system information and credentials

After installation, system details, OpenStack version, and admin credentials will be displayed as a Message of the Day (MOTD) upon SSH login.

Example output:

OS_FAMILY: Debian
OS_DISTRO: Ubuntu
OS_DISTRO_VERSION: 22.04
OPENSTACK_VERSION: caracal
ROCKOON_VERSION: 1.0.11
ADMIN_USERNAME: adminlpsdb63Gvn1
ADMIN_PASSWORD: tLuQfuJVAxxxxxxxxxxxxx
