Back up with an in-cluster storage provider

By default, MKE 4k stores backups and restores using the in-cluster storage provider, the MinIO add-on.

ℹ️

MinIO is not currently backed by persistent storage. For persistent storage of backups, use an external storage provider or download the MinIO backups.

ℹ️

The offered instructions assume that you have created a cluster with the default MKE 4k backup configuration.

Create an in-cluster backup

To create an in-cluster backup, run:

mkectl backup create --name <name>

Example output:

mkectl backup create --name test
INFO[0000] Creating backup test...
Backup request "test" submitted successfully.
Run `velero backup describe test` or `velero backup logs test` for more details.
INFO[0000] Waiting for backup test to complete...
INFO[0003] Waiting for backup to complete. Current phase: InProgress
INFO[0006] Waiting for backup to complete. Current phase: InProgress
INFO[0009] Waiting for backup to complete. Current phase: InProgress
INFO[0012] Waiting for backup to complete. Current phase: InProgress
INFO[0015] Waiting for backup to complete. Current phase: Completed

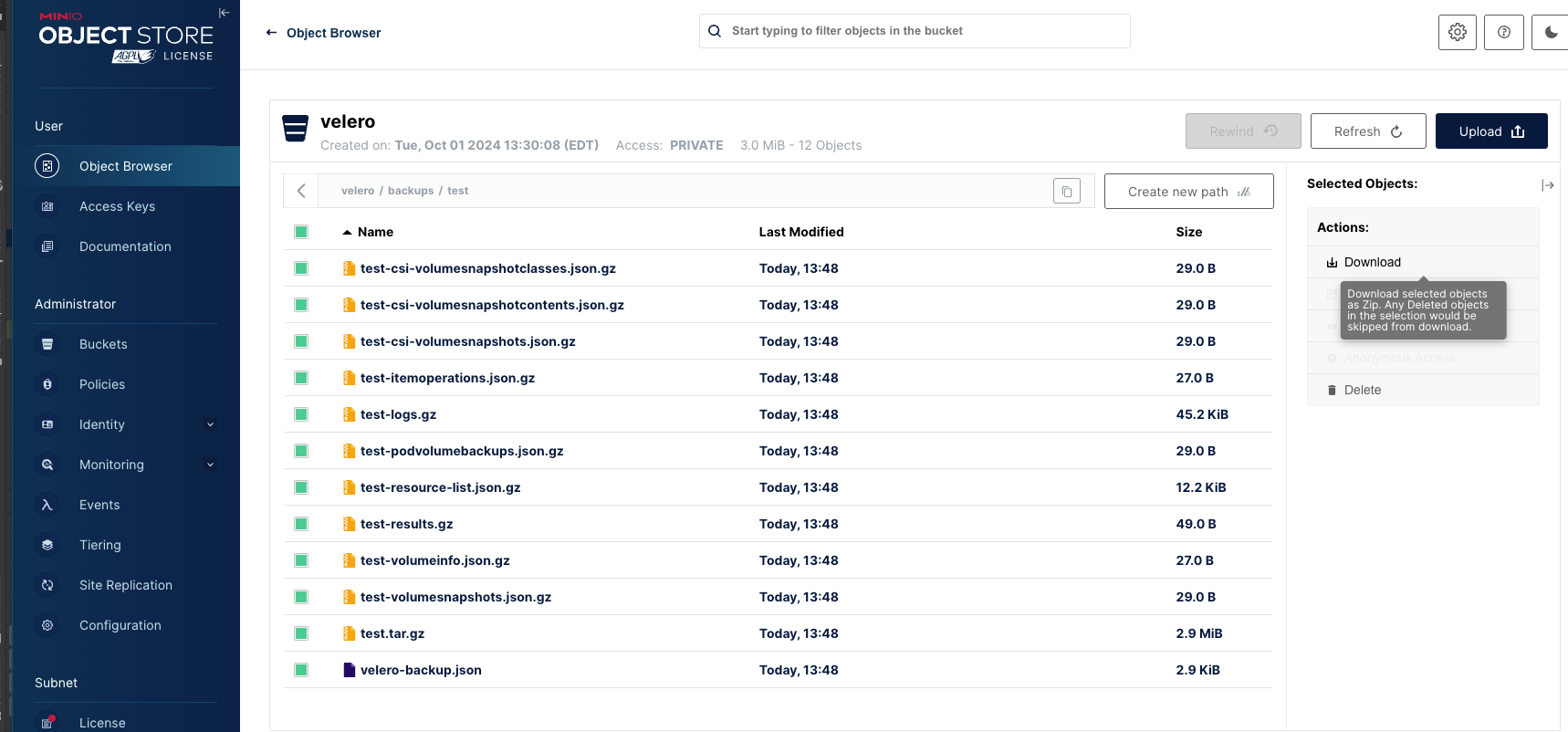

The backup should be present in the MinIO bucket.

To list the backups, run:

mkectl backup list

Example output:

mkectl backup list
NAME   STATUS      ERRORS   WARNINGS   CREATED                         EXPIRES   STORAGE LOCATION   SELECTOR
test   Completed   0        0          2024-05-07 17:29:18 -0400 EDT   29d       default            <none>

Restore from an in-cluster backup

A restore operation returns the Kubernetes cluster to the state it was in at the time the backup you selected was created.

To perform a restore using an in-cluster backup, run:

mkectl restore create --name test

Example output:

mkectl restore create --name test
INFO[0000] Waiting for restore test-20240507173309 to complete...
INFO[0000] Waiting for restore to complete. Current phase: InProgress
INFO[0003] Waiting for restore to complete. Current phase: InProgress
INFO[0006] Waiting for restore to complete. Current phase: InProgress
INFO[0009] Waiting for restore to complete. Current phase: InProgress
INFO[0012] Waiting for restore to complete. Current phase: InProgress
INFO[0015] Waiting for restore to complete. Current phase: InProgress
INFO[0018] Waiting for restore to complete. Current phase: InProgress
INFO[0021] Waiting for restore to complete. Current phase: InProgress
INFO[0024] Waiting for restore to complete. Current phase: InProgress
INFO[0027] Waiting for restore to complete. Current phase: Completed
INFO[0027] Restore test-20240507173309 completed successfully

To list the restores, run:

mkectl restore list

Example output:

mkectl restore list
NAME                  BACKUP   STATUS      STARTED                         COMPLETED                       ERRORS   WARNINGS   CREATED                         SELECTOR
test-20240507173309   test     Completed   2024-05-07 17:33:09 -0400 EDT   2024-05-07 17:33:34 -0400 EDT   0        121        2024-05-07 17:33:09 -0400 EDT   <none>

Last updated on September 10, 2025
